          Description

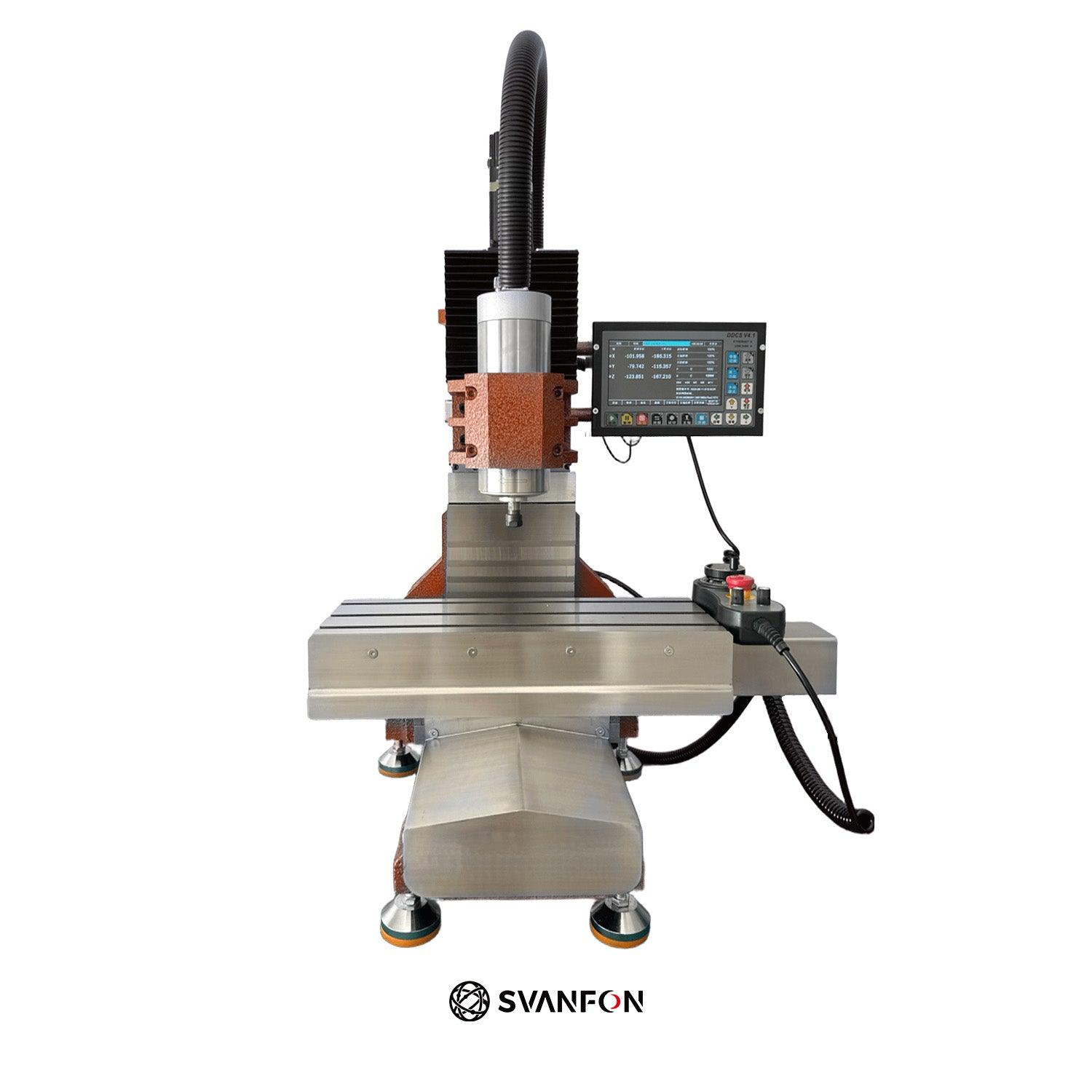

          Mini CNC Milling Machine

          Pre-sale products

          Travel: X200mmY axis 150mmZ axis 300mm
          Protection: XYZ three axes are all protected by 304 stainless steel
          Guide rails: XY all use HGH15 guide rails, Z axis HGH20 guide rails
          Screw: XYZ three axes all use SFU1605 ball screws
          Screw fixing seat: XYZ three axes all use high-precision screw fixing seat (c5) and support seat
          Drive motor: XYZ all use closed-loop stepper motor control (Z axis with brake)
          Accuracy: Three-axis verticality and repeated positioning accuracy <0.02mm
          Spindle: The spindle uses a 1.5KW 24000 rpm high-speed spindle
          System: DDCSv4.1 offline control system
          Three axes with origin switches

          Machine Weight:Approximately 140 kg.

          Shipping method: Ocean shipping

          Order Processing Notice:

          Please note that this product is currently in the production queue and cannot be shipped immediately. It takes 30 days to manufacture, and we will arrange shipment as soon as production is completed. Thank you for your patience!
